1.TDTG系列提升机适用于粮油、食品、饲料和化工等行业的颗粒的垂直升运。
大型提升机******产量可达500T/h
用途与特点 Applications and features
2.本设备是引进国外先进技术生产的新产品,其外观新颖美观、工作可靠、体积小、结构紧凑、工艺布置适应性强、输送量大,过载调节能力强、低能耗、无破碎、无回流、密封性好、噪音低、使用寿命长、粉颗通用,是目前***理想的垂直升运设备。

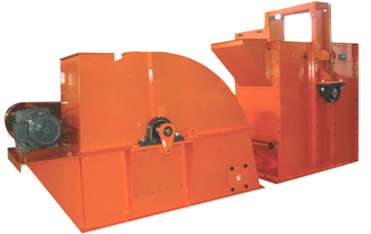

1.The TDTG Series Hoisting Machine is used for vertical lifting of grains in such industries as grains & oils, food, feedstuff and chemical.
2.The TDTG Series Hoisting Machine is a new product manufactured with advanced technology imported from abroad, which is novel and beautiful in appearance, safe and reliable in operation, small in volume, compact in structure, strongly adaptable in processing set-up, large in conveying volume, strong in overload adjustment ability, low energy consumption, non-breaking, non-back-flow, good in sealing, low in noise, long in service life and appplicable for both powder and granules,thus making it an ideal vertical hoisting equipment.
技术参数Technical parameters
中低速(s)型
Medium and low speed (s)type
机种
Machine type
6S
7S
8S
10S
12S
14S
产量(t/h)
Output
6-9
8-12
15-28
25-40
40-60
70-100
超低速(R)型
Ultra low speed (R)type
机种
Machine type
6R
8R
10R
2×8R
产量(t/h)
Output
6
15
30
40
头轮耐磨层可快速更换
The maximum output of a large-sized hoisting machine is up to 500/h. The head wheel and the anti-wear layer are quick-changeable.
