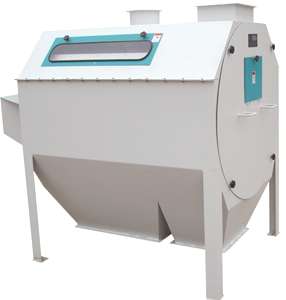

TSCY系列圆筒初清筛

发布时间:2014/12/23

用途与特点 Applications and features
1.适用范围
TSCY圆筒初清筛可用于原料接收部分进行预清理,主要清除出大的杂质:如稻草、麻绳、石块等类似的废弃物,使随后的机器设备、输送装置等免生故障和损坏。
2.性能特点
本机具有产量高、动力消耗少、结构简单、占用位置小、易于安装、维修少、调换筛筒方便等特点,同时根据物料性质,选配适宜的筛孔,就能达到产量要求和分离效果。
1.Applicable scope
The TSCY Circular Cylinder Preliminary Cleaning Sieve is used for preliminary cleaning in the material receiving unit, to be exact, to clear off such large odds and ends as rice straws, hemp ropes, stones and similar castoffs, so as to prevent the machines and devices in subsequent steps from troubles and damages caused.
2.Performance characteristics
The TSCY Circular Cylinder Preliminary Cleaning Sieve is characteristic of high output, low power consumption, simple structure, small area occupation, easy installation, slight maintenance and convenient sieve barrel replacement and,selectively pairing with suitable sieve mesh, is able to meet the output requirement and to achivev the separation result.


技术参数Technical parameters
型号type
项目ltem
TSCY63
TSCY80
TSCY100
TSCY125
筛筒规格(mm)
sievebarrle specifications
φ630×800
φ800×950
φ100×1150
φ1250×1400
筛筒转速(转/分)(r/min)
Sieve barrel rotation speed
25
22
22
20
产量(t/h)
Output
6-12
10-15
20-30
30-50
需要吸风量((m3/h)
Air suction volume required
480
720
900
1100
外型尺寸(mm)
Outer dimensions
1650×790×1260
2030×1000×1560
1750×1250×2068
2000×1500×2318
机量(kg)
Machine weight
300
475
800
950
